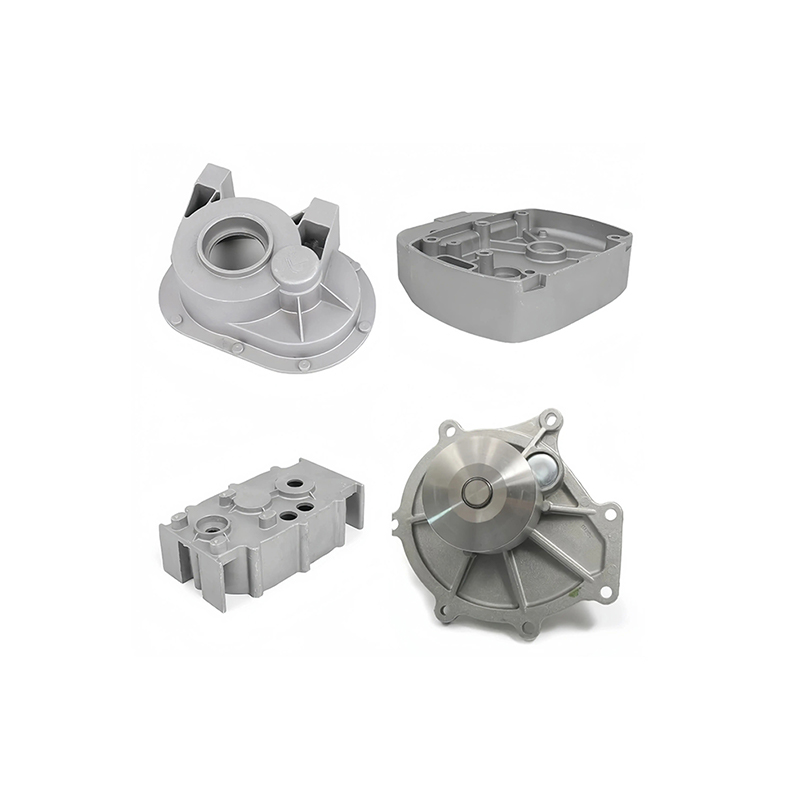

Precision Aluminum Die Cast Small and Medium Motor Housings

Core strengths

Core Technical Advantages
Precision Die Casting Process
We utilize 160T-800T high-speed die casting machines equipped with vacuum assist systems, ensuring housing density ≥98.5%. The flow channel design, optimized specifically for small and medium housings, controls wall thickness uniformity within ±0.2mm, especially suitable for complex heat dissipation structures and thin-wall (2.0-4.0mm) designs.

Material Science
Selection of high-quality aluminum alloys such as ADC12, A380, and AlSi10Mg, providing options for different performance levels:
ADC12: Economical and practical, thermal conductivity 96W/(m·K)
A380: Balanced performance, tensile strength ≥320MPa
AlSi10Mg: High strength requirement, elongation ≥3.5%

Precision Machining Capability
Equipped with multi-axis CNC machining centers, capable of completing machining of critical areas such as end faces, bearing seats, and mounting holes in one step, ensuring:
Bearing seat precision: H7 grade (±0.015mm)
Mounting face flatness: ≤0.03mm/100mm
Positional accuracy: ±0.02mm

Quality Control System
Full-Process Inspection
Raw material testing: Spectroscopic analysis, ensuring compliance with composition standards
Process control: Real-time monitoring of die casting parameters
Finished product testing:
Dimensions: 100% CMM inspection of critical dimensions
Porosity: X-ray inspection, compliant with ASTM E505
Air Tightness: Helium mass spectrometer leak detection, leakage rate <0.5cc/min
Surface: Roughness, film thickness, adhesion testing

Performance Validation
Heat dissipation test: Infrared thermal imaging analysis
Vibration test: 5-2000Hz frequency sweep, compliant with GB/T 2423
Life test: Accelerated aging test
Environmental testing: Temperature cycle, salt spray, damp heat tests

Core Product Introduction

Product Series and Applications
1. Industrial Servo Motor Housings
Size Range*: Φ80-200mm
Key Features:
High-rigidity design, deformation ≤0.05mm/100mm

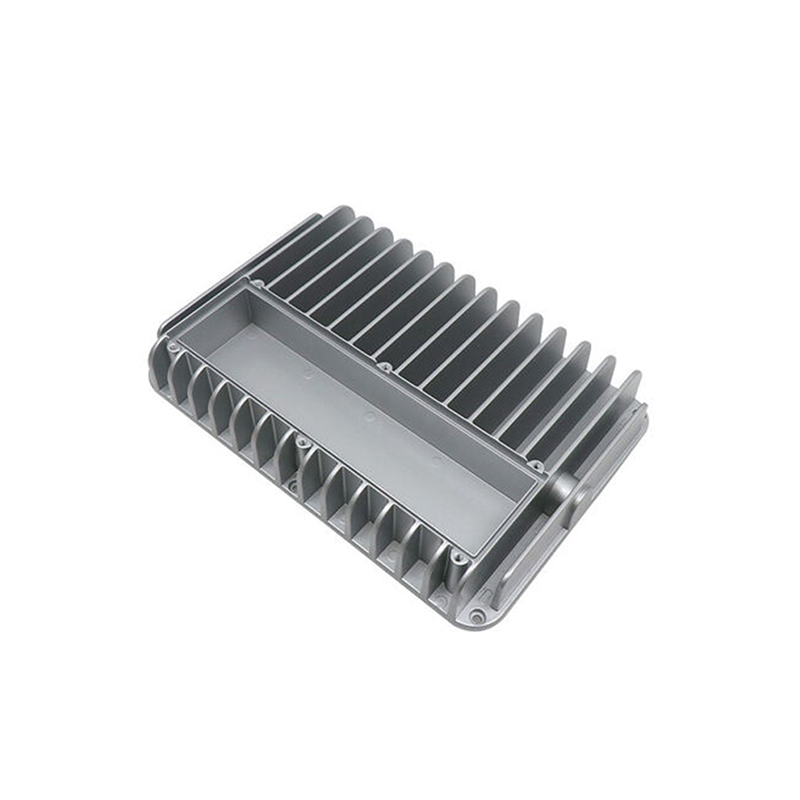

Optimized cooling fins, temperature rise reduced by 15-20%
Protection rating: IP65 standard design
Application fields: Robotic arms, automation equipment, CNC machine tools

2. Household Appliance Motor Housings
Typical products: Air conditioner fan motors, washing machine motors, vacuum cleaner motor housings
Performance Characteristics:
Low noise design, optimized structural resonance frequency
Diverse surface treatment: Anodizing, powder coating, electrophoresis
Monthly capacity: Up to 500,000 pieces
Cost advantage: 30% lower cost than traditional processes

3. Power Tool Motor Housings
Special Requirements:
Anti-shock design, passed 1-meter drop test
Dustproof structure, adaptable to dusty environments
Ergonomic shape, comfortable grip
Material solution: A380-T5 heat treatment, hardness HB80-90

4. New Energy Vehicle Auxiliary Motor Housings
Technical Parameters:
Operating temperature: -40℃ to +150℃
Protection rating: IP67
Lightweight design: 40% lighter than traditional solutions
Certification support: Complies with IATF 16949 system requirements

Technical Support and Services

Service Process

Requirements Confirmation (1-3 Days)

Understand application scenarios and performance requirements

Preliminary solution design and material recommendation

Technical Development (7-10 Days)

3D design and CAE analysis

Mold solution and cost evaluation

Sample schedule confirmation

Sample Production (10-15 Days)

Mold manufacturing and trial run

Sample production and inspection

Sample delivery and testing feedback

Mass Production (According to Order Plan)

Raw material preparation

Production process control

Quality inspection and packaging

On-time delivery

After-Sales Service

Quality tracking

Technical support

Continuous improvement

Frequently Asked Questions
Q: What is the Minimum Order Quantity (MOQ)?
A: There is no MOQ required during the sampling phase. For mass production, the MOQ is generally 500-1000 pieces, depending on product complexity.

Q: What surface treatments can you provide?
A: Anodizing (various colors), powder coating, electrophoresis, micro-arc oxidation, etc. We recommend the most suitable solution based on the application.

Q: How are mold costs calculated?
A: Costs are evaluated based on product size and complexity. They are usually included in the initial order and may be reimbursed or offset after a certain production volume is reached.

Q: Do you offer in-house machining?
A: Yes, we provide one-stop service from die-casting to machining, including all processes for bearing seats, end faces, threaded holes, etc.

Q: What is your monthly production capacity?
A: The monthly capacity for small and medium-sized housing can reach 1 million pieces, which can be flexibly adjusted according to demand.

Obtaining Samples and Quotations

We offer a free sampling service, allowing you to witness our product quality firsthand:

Provide drawings or technical requirements

Technical evaluation and solution confirmation

Sample production and testing

Sample delivery and feedback collection

Negotiation for mass production cooperation

Why choose us
Professional Focus
15 years of focus on manufacturing small and medium-sized motor housings, serving 300+ global clients across various sectors, including industry, home appliances, tools, and automotive.

Rapid Response
Sample lead time: 7-10 working days
Small batch production: 15-20 days
Large volume orders: 30-45 days
Mold development: 25-35 days

Cost Advantage
Scaled production reduces unit costMaterial utilization rate ≥92%
Automated production lines reduce labor costs
Overall cost is 40-60% lower than machining solutions

Technical Support
Free design optimization suggestions
DFM (Design for Manufacturability) analysis
Mold life ≥200,000 shots
Continuous process improvement
